Minerva Digital Pattern 6018 – Men’s Single-Breasted 3-Button Blazer with Double Flap Pockets
Introducing a digital pattern for the single-breasted men’s jacket with flap pockets and notched lapels – Sharp Structure with Timeless Elegance.
WHEN TO WEAR DESIGN 6018
This tailored jacket is a versatile essential, making it perfect for:
- Business Wear: A refined companion to dress shirts and trousers for professional settings.
- Special Occasions: Ideal for weddings, evening events, or formal gatherings.
- Smart Casual: Dress down with denim or chinos for an effortless, modern look.

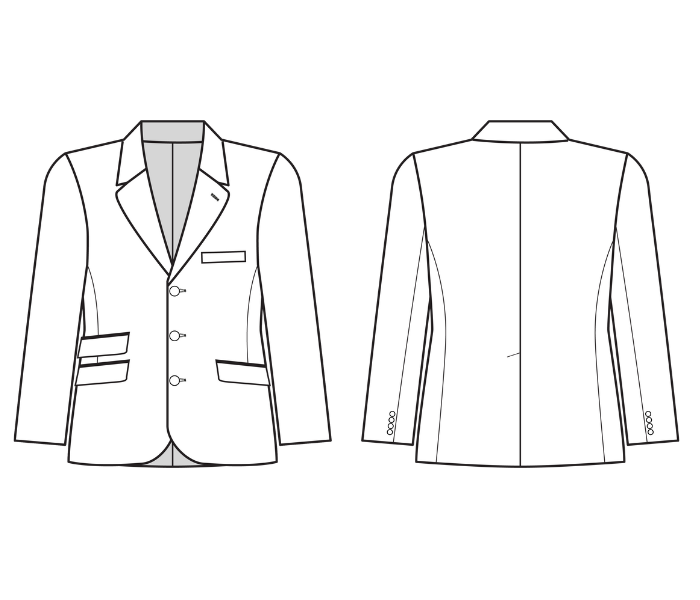

KEY DESIGN FEATURES
Silhouette: Structured, single-breasted jacket with shaping seams for a tailored fit.
Collar & Lapels: Notched lapel collar with clean lines and refined proportions.
Front: Three-button closure with two lower flap pockets and a double welt chest pocket.
Back: Center-back seam with vent for ease of movement.
Sleeves: Two-piece tailored sleeves with button cuffs.
Details: Double flap pocket design adds structure and classic style.
LEVEL OF DIFFICULTY
Advanced. Requires precision in setting sleeves, constructing tailored lapels, and applying professional finishing techniques with interfacing and lining.
SEAM ALLOWANCES
No seam allowances by default. If the option to add them at €1 is chosen, pattern will come with seam allowances included.
Please note:
- A single contour on the pattern pieces means no seam allowances are included.
- A double contour indicates seam allowances are included.
FABRIC RECOMMENDATIONS FOR DIGITAL PATTERN 6018
Wool or wool-blend suiting fabrics, or medium-weight tailored fabrics with structure and drape:
- Worsted wool suiting
- Wool blend gabardine
- Twill suiting fabrics
- Blended tailoring cloths
ADDITIONAL SUPPLIES
- Lining fabric
- 20 cm non-woven material (90 cm width)
- 1.30 m fusible interfacing (140 cm width)
- 80 cm padding (8 cm width)
- 3 medium buttons (20 mm)
- 9 small buttons (15 mm)
- Shoulder pads
CUTTER’S MUST FOR DIGITAL PATTERN 6018
From Main Fabric:
- Back – 2 pieces
- Front – 2 pieces
- Side Panel – 2 pieces
- Sleeve Upper – 2 pieces
- Sleeve Under – 2 pieces
- Pocket Flap – 2 pieces
- Right Pocket Flap – 1 piece
- Left Pocket Flap – 1 piece
- Pocket Bag – 2 pieces
- Right Pocket Bag – 1 piece
- Upper Collar – 1 piece on fold
- Collar Stand – 1 piece on fold
- Facing – 2 pieces
- Left Pocket Bag – 1 piece
- Pocket Welt – rectangle 18 × 3 cm – 4 pieces
- Right Pocket Welt – rectangle 13 × 3 cm – 2 pieces
- Left Pocket Welt – rectangle 13 × 3 cm – 2 pieces
From Non-Woven Material:
- Under Collar – 1 piece on fold
From Lining Fabric:
- Back – 1 piece on fold (add 2 cm ease fold at center back)
- Front – 2 pieces (excluding facing area)
- Sleeve Upper – 2 pieces
- Sleeve Under – 2 pieces
- Side Panel – 2 pieces
- Pocket Flaps, Pocket Bags – as main fabric
From Fusible Interfacing:
- Upper Collar – 1 piece
- Collar Stand – 1 piece
- Fronts – 2 pieces
- Facings – 2 pieces
- Pocket Flaps – 2 pieces
- Pocket Welts – all
- Hem facings – jacket + sleeves
- Vent allowance – left back piece
Tailoring Note: If working with plaids or checks, align patterns carefully to match along seams.
IMPORTANT INFORMATION
Before cutting your fabric, print and lay out the paper patterns according to your fabric width (90–150 cm) to determine yardage. Remember to include paired and symmetrical pieces. Press fusible interfacing on all marked areas before assembly.
DIGITAL PATTERN 6018 FOR 3D DESIGNERS, CONTRACTORS, AND ADVANCED SEWISTS
DXF AAMA – For 3D designers, fully compatible with most 3D fashion software.
PLT – For contractors, enabling precise cutting layouts.
PDF – Print-at-home format for advanced sewists.
CUSTOM FIT OPTIONS WITH INDIVIDUAL MEASUREMENTS OR ASTM SIZES
Pattern 6018 offers both custom sizing based on individual measurements and ASTM US standard sizing:
- Bust/Chest: 35 cm to 170 cm
- Low Hip: 35 cm to 190 cm
The drafting software tailors the pattern to your specific dimensions, ensuring precise fit at the shoulders, chest, and sleeve length—minimizing alterations and enhancing comfort.
