Raglan Sleeve Jacket

Name: Raglan Sleeve Jacket
Brand: Minerva Patterns
SKU: 4173
Price: 5.00 EUR
Availability: InStock

Pattern #4173

A women's hip-length lined jacket with a high stand collar, a three-button front and wide raglan sleeves cut in two parts. The raglan seams curve across the chest and the upper back and are topstitched 0.7 cm from the seam. Drafted to your own measurements. Recommended fabric: thin coating fabrics of natural or blended fibres, for example cashmere.

Tech. Description

Raglan Sleeve Jacket

When To Wear

In spring and autumn as a short jacket over dresses, blouses and trousers.
Over long-sleeved tops: the three-quarter sleeves are wide enough to show the sleeve underneath.

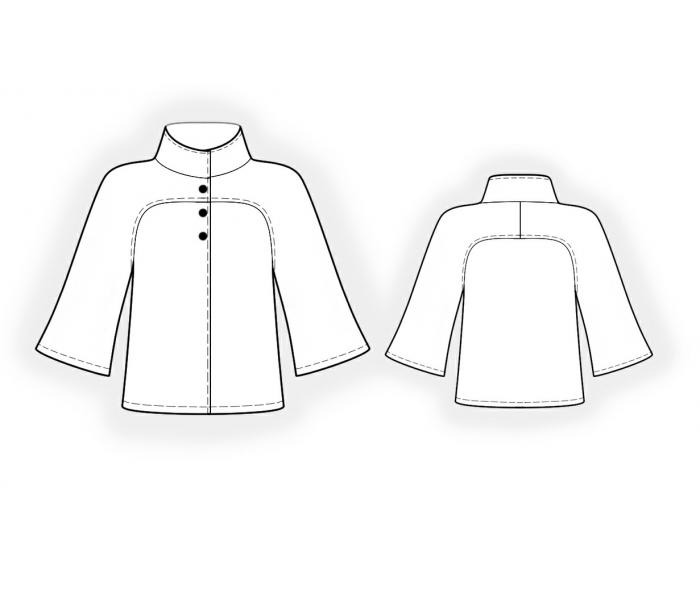

Key Design Features

Silhouette: Straight, boxy body.

Length: Hip length.

Collar: High stand collar in two layers: the outer stand is interfaced and sewn to the jacket neckline, the inner stand to the facings.

Sleeves: Raglan, three-quarter length, widening towards the hem. Each sleeve has a front and a back part joined by a seam along the top of the arm; the back sleeve parts meet in a centre back seam above the back.

Front: Bust darts on the fronts; the front raglan seam forms a curved line across the chest.

Closure: Three buttons with buttonholes on the right front, placed in the upper part of the front.

Back: One piece below the curved raglan seam.

Finishing: Raglan seams, front edges, hem, collar and sleeve hems topstitched 0.7 cm from the edge; raglan shoulder pads.

Lining: Full lining, bagged and turned through an opening in the right sleeve lining seam.

Level Of Difficulty

Intermediate. Two-part raglan sleeves with topstitched seams, a two-layer stand collar stitched together with the front edges, a fully bagged lining.

Fabric Recommendations

Thin coating fabrics of natural or blended fibres, for example cashmere.

Additional Supplies

Lining fabric
Fusible interfacing (front facings, back neck facing, outer stand collar)
Raglan shoulder pads
3 buttons

Cutter's Must

If the patterns have a double contour, they include seam allowances; if the contour is single, the patterns do not include seam allowances. Seam allowances: Hem allowance for the garment bottom and sleeve hem – 3 cm, other seams – 1 cm. Attention! First, print out the paper patterns and lay them out on the fabric width (fabric width can be from 90 cm to 150 cm) to determine how much material you will need (don't forget to account for paired and symmetrical pieces).

From main fabric:
- Back – 1 piece
- Front – 2 pieces
- Back Sleeve – 2 pieces
- Front Sleeve – 2 pieces
- Stand Collar – 2 pieces
- Back Neckline Facing – 1 piece
- Center Front Facing – 2 pieces
From lining fabric:
- Back – 1 piece
- Front – 2 pieces
- Back Sleeve – 2 pieces
- Front Sleeve – 2 pieces
Attention: The Back Sleeve, Front Sleeve and Front lining pieces are cut minus the Back Neckline Facing and Center Front Facing.
From fusible interfacing:
- Stand Collar – 1 piece
- Center Front Facing – 2 pieces
- Back Neckline Facing – 1 piece

Sewing Instructions

When stitching pieces, pay attention to the notches - they must match!

Fuse interfacing to the Center Front Facings, the Back Neckline Facing and the outer Stand Collar.
Stitch the center back seam of the Back Sleeve pieces. Press the seam open.
Stitch the darts on the front. Press dart folds upwards.
Stitch the Back Sleeve to the Back, press seam allowances towards the sleeve. Topstitch along the seam at 0.7 cm. Stitch the Front Sleeve to the Front, press seam allowances towards the sleeve. Topstitch along the seam at 0.7 cm. Stitch the upper sleeve seam. Press seam allowances towards the front. Topstitch along the seam at 0.7 cm.
Stitch the Back Neckline Facing to the Center Front Facings, press the seams open. Stitch the inner Stand Collar to the neckline of the facings. Clip and press the seams open.
Stitch the outer Stand Collar to the neckline of the jacket. Clip and press seams open.
Place the facings with the inner Stand Collar on the jacket, right sides together, and stitch along the front edges and the Stand Collar. Trim seam allowances at corners, turn right side out, and straighten.
Stitch the lining pieces similarly to the main fabric pieces, leaving an opening in the lower seam of the right sleeve. Attach the lining to the inner edges of the front facings and the back neckline facing. Tack the Stand Collar seam allowances of the jacket and facing together close to the seams. Stitch the lower corner of the front edge, trim corners. Mark and press the garment hem to the wrong side. Stitch the lining to the garment hem and sleeve hems. Turn the garment right side out through the opening in the sleeve and stitch the technical opening closed. Topstitch along the front edge, garment hem, collar, and sleeve hems at 0.7 cm from the edge.
On the right front, make buttonholes; on the left front, sew on buttons.
