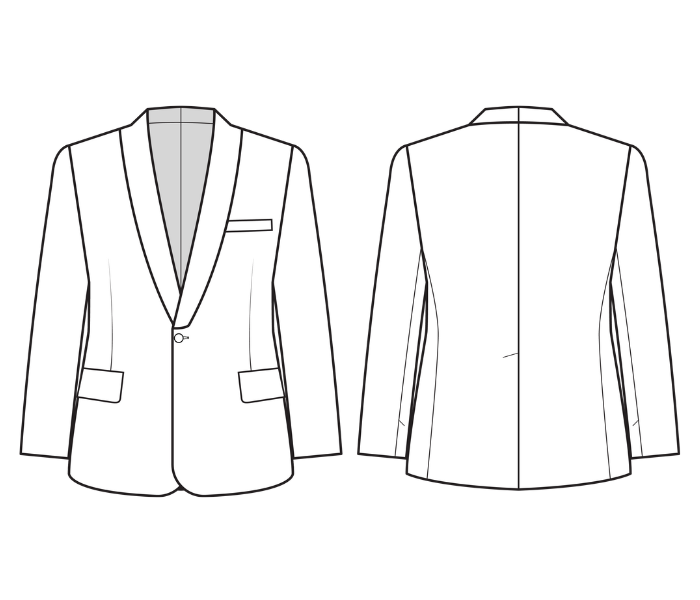

Minerva Digital Pattern 6080 – Men’s Shawl Collar Tuxedo Jacket
Introducing a digital pattern for the formal tuxedo jacket with shawl collar – Classic Black Tie Elegance.
WHEN TO WEAR DESIGN 6080
This jacket is the essential element of a black-tie ensemble, ideal for:
- Evening Galas & Receptions: Traditional single-breasted tuxedo styling with refined shawl collar.
- Weddings & Formal Occasions: Perfect for grooms, groomsmen, and distinguished guests.
- Concerts & Special Performances: An elegant jacket designed to pair seamlessly with tuxedo trousers.
KEY DESIGN FEATURES
Silhouette: Single-breasted tailored jacket with a slim, elongated line.
Collar: One-piece shawl collar, cut together with the front and facing, typically finished in satin or silk for formal contrast.
Closure: One-button front fastening.
Pockets: Welt chest pocket; two lower flap pockets with welts.
Sleeves: Full-length, two-piece tailored sleeves with vents.
LEVEL OF DIFFICULTY
Advanced. Precision tailoring is required for the shawl collar, welt pockets, and structured fit.
SEAM ALLOWANCES
No seam allowances by default. If the option to add them at €1 is chosen, the pattern will come with seam allowances included.
Please note: A single contour on the pattern pieces means no seam allowances are included. A double contour indicates seam allowances are included.
FABRIC RECOMMENDATIONS FOR DIGITAL PATTERN 6080
Traditional tuxedo fabrics with contrasting facing:
- Main Fabric: Wool barathea, worsted wool, or fine gabardine.
- Collar Facing (part of front): Satin, silk, or grosgrain.
- Lining: Silk, viscose, or acetate lining fabrics.
ADDITIONAL SUPPLIES
- Fusible interfacing – for front, facings, and pocket welts
- One button for front closure
- Sleeve heads and shoulder pads for structure
CUTTER’S MUST FOR DIGITAL PATTERN 6080
From Main Fabric:
- Front (with shawl collar) – 2 pieces
- Back – 2 pieces
- Side Panels – 2 pieces
- Upper Sleeve – 2 pieces
- Lower Sleeve – 2 pieces
- Front Facings (integrated) – 2 pieces
- Pocket Flaps – 4 pieces (2 pairs)
- Chest Pocket Welt – 1 piece
From Lining Fabric:
- Front – 2 pieces (cut minus facing width)
- Back – 2 pieces
- Side Panels – 2 pieces
- Upper Sleeve – 2 pieces
- Lower Sleeve – 2 pieces
- Pocket Bags – as indicated
From Interfacing:
- Front – 2 pieces
- Front Facings – 2 pieces
- Pocket Welts & Flaps – as required
IMPORTANT INFORMATION
Before cutting your fabric, print and lay out the paper patterns according to your fabric width (140–150 cm) to determine yardage. Carefully match balance lines and ensure correct placement of welt pockets.
DIGITAL PATTERN 6080 FOR 3D DESIGNERS, CONTRACTORS, AND ADVANCED SEWISTS
DXF AAMA – For 3D designers, fully compatible with most 3D fashion software.
PLT – For contractors, enabling precise cutting layouts.
PDF – Print-at-home format for advanced sewists.
CUSTOM FIT OPTIONS WITH INDIVIDUAL MEASUREMENTS OR ASTM SIZES
Pattern 6080 offers both custom sizing based on individual measurements and ASTM US standard sizing:
- Bust/Chest: 35 cm to 170 cm
- Low Hip: 35 cm to 190 cm
The drafting software tailors the pattern to your specific dimensions, ensuring ideal fit at the shoulders, waist, and sleeve length—minimizing alterations and enhancing comfort.

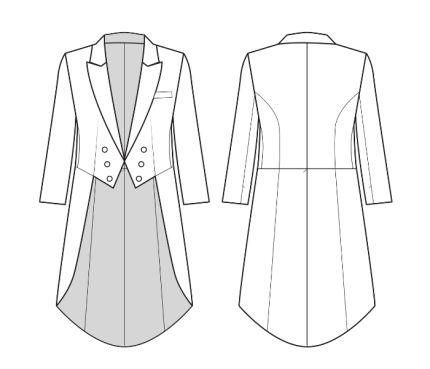

CHECK OUT ANOTHER DIGITAL PATTERN
