Minerva Digital Pattern 6017 – Classic Three-Button Blazer
Introducing a digital pattern for the single-breasted tailored jacket with three-button closure – Timeless Menswear with Modern Precision.
WHEN TO WEAR DESIGN 6017
This structured blazer offers versatile elegance, making it ideal for:
- Business & Formal Events: A polished essential for office meetings, presentations, and professional gatherings.
- Smart Casual Outings: Pair with jeans or chinos for a refined weekend look.
- Special Occasions: A classic jacket that completes both day and evening ensembles.

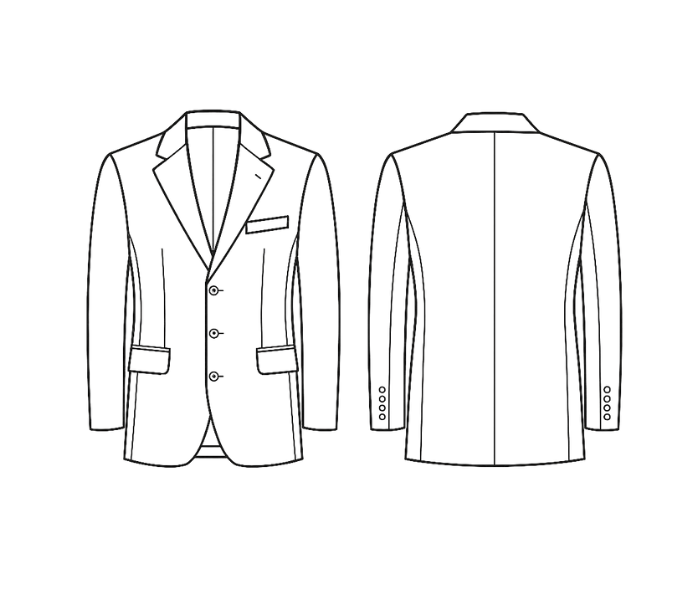

KEY DESIGN FEATURES
Silhouette: Tailored single-breasted blazer with three-button front closure and a clean back with center seam.
Collar & Lapel: Notched lapel with structured collar for a sharp, modern profile.
Pockets: Two front flap pockets, one welt chest pocket, and inner pocket options.
Sleeves: Long two-piece sleeves finished with four decorative buttons at the vent.
Back: Center-back seam with double vents for ease of movement.
LEVEL OF DIFFICULTY
Advanced. Precision is required for constructing the lapel, setting tailored sleeves, and achieving a professional finish with canvas stitching and interfacing.
SEAM ALLOWANCES
No seam allowances by default. If the option to add them at €1 is chosen, pattern will come with seam allowances included.
Please note:
- A single contour on the pattern pieces means no seam allowances are included.
- A double contour indicates seam allowances are included.
FABRIC RECOMMENDATIONS FOR DIGITAL PATTERN 6017
Choose high-quality suiting fabrics in natural or blended fibers for crisp tailoring:
- Pure wool or wool blends
- Worsted suiting or lightweight tweed
- Fine gabardine or structured cotton blends
ADDITIONAL SUPPLIES
- Fusible interfacing for fronts, facings, collar, and pocket flaps
- Hair canvas or basting tape for lapel shaping
- Shoulder pads
- Three front buttons (20 mm)
- Eight small sleeve buttons (14 mm)
- Lining fabric to match
- Optional sleeve head wadding
CUTTER’S MUST FOR DIGITAL PATTERN 6017
From Main Fabric:
- Jacket Back – 2 pieces
- Jacket Front – 2 pieces
- Side Panel – 2 pieces
- Upper Sleeve – 2 pieces
- Under Sleeve – 2 pieces
- Upper Collar – 1 piece
- Collar Stand – 1 piece
- Under Collar – 1 piece
- Front Facing – 2 pieces
- Pocket Flap – 2 pieces
- Welt Pocket Piece – 1 piece
- Pocket Bag – 2 pieces
From Lining Fabric:
- Back with ease pleat – 1 piece on fold
- Front minus facing – 2 pieces
- Side Panel – 2 pieces
- Upper Sleeve – 2 pieces
- Under Sleeve – 2 pieces
- Pocket Bags – 2 pieces
From Fusible Interfacing:
- Fronts – 2 pieces
- Front Facing – 2 pieces
- Upper Collar – 1 piece
- Collar Stand – 1 piece
- Under Collar – 1 piece
- Pocket Flaps – 2 pieces
- Welt Pocket Piece – 1 piece
ADDITIONAL TAILORING NOTES
- Canvas Transfer for Lapel Support: For the basting canvas, trace the upper marked portion of the jacket front above the dashed lapel line. This ensures accurate shaping and proper roll of the lapel during construction.
- Plaid & Stripe Matching: When cutting plaid or striped fabrics, carefully pin and align each pattern piece to preserve perfect check or stripe alignment across seams and pockets.
IMPORTANT INFORMATION
Before cutting your fabric, print and lay out the paper patterns according to your fabric width (90–150 cm) to determine yardage. Remember to include paired and symmetrical pieces. When matching plaid or stripe fabrics, carefully align grainlines to ensure pattern continuity across seams.
DIGITAL PATTERN 6017 FOR 3D DESIGNERS, CONTRACTORS, AND ADVANCED SEWISTS
- DXF AAMA – For 3D designers, fully compatible with most 3D fashion software.
- PLT – For contractors, enabling precise cutting layouts.
- PDF – Print-at-home format for advanced sewists.
CUSTOM FIT OPTIONS WITH INDIVIDUAL MEASUREMENTS OR ASTM SIZES
Pattern 6017 offers both custom sizing based on individual measurements and ASTM US standard sizing:
- Chest: 35 cm to 170 cm
- Low Hip: 35 cm to 190 cm
The drafting software tailors the pattern to your specific dimensions, ensuring ideal fit at the shoulders, chest, and sleeve length—minimizing alterations and enhancing comfort.
