Pattern 6009

Minerva Digital Pattern 6009

Introducing a digital pattern for the classic men’s single-breasted overcoat – Timeless Elegance Meets Functional Outerwear.

WHEN TO WEAR DESIGN 6009

This full-length overcoat elevates any cold-weather ensemble with classic tailoring and confident structure:

City Winters: A wardrobe staple over businesswear or knitwear for urban polish and warmth.
Evening Engagements: Layer over suits or turtlenecks for refined evening attire.
Everyday Cold Weather: Practical yet elegant—pair with jeans or tailored trousers for versatile, warm dressing.

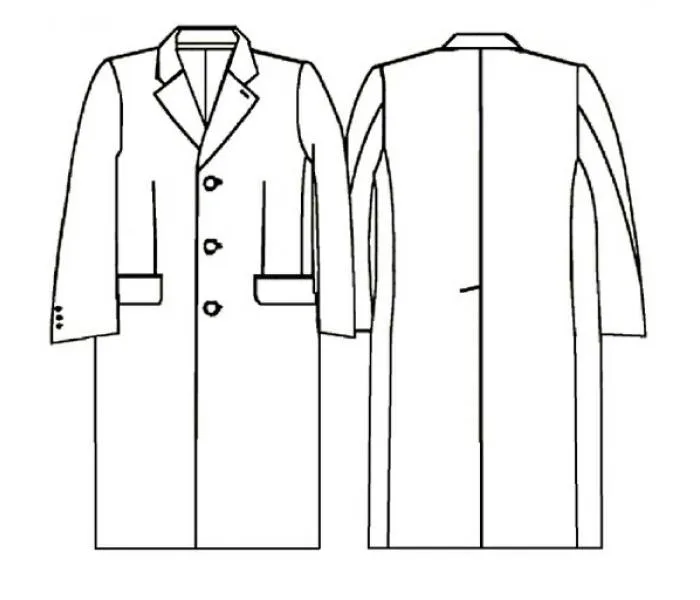

KEY DESIGN FEATURES

Silhouette: Long, straight-cut shape with slight tapering at the waist for tailored structure.

Closure: Center front with three large buttons for clean, masculine finish.

Collar & Lapel: Traditional notch collar with structured shaping and defined edges.

Pockets: Two front flap pockets with tailored facings and bags.

Sleeves: Two-piece set-in sleeves with elegant shaping and optional buttoned vent detail.

Back: Center back seam with a vent.

Lining & Structure: Full lining with padded shoulders.

Style: Refined winter essential with subtle power—cut to suit wool fabrics with weight and texture.

LEVEL OF DIFFICULTY

Advanced. Best suited for sewists experienced in tailored overcoats, structured collars, flap pocket construction, and lining assembly.

SEAM ALLOWANCES

No seam allowances by default. If an option to add them at 1 EUR is chosen, pattern will come with seam allowances included.

Please note: A single contour on the pattern pieces means no seam allowances are included. A double contour indicates seam allowances are included.

FABRIC RECOMMENDATIONS FOR DIGITAL PATTERN 6009

Use warm, structured coating fabrics to maintain the tailored form:

• Wool or wool-blend coating (solid, twill, or melton)
• Brushed wool blends with body
• Tonal lining for full inner coverage

Avoid soft, drapey, or lightweight materials—they compromise the integrity of the silhouette.

ADDITIONAL SUPPLIES

• Wool Coating

• Nonwoven Fabric: 20 cm x 90 cm (for undercollar)

• Lining Fabric: Tonal color, full body and sleeves

• Fusible Interfacing

• Padding Strip (Sintepon): 80 cm x 8 cm

• Buttons:

  • 3 large (25 mm) for front closure

  • 8 small (12 mm) for sleeve vents

• Shoulder Pads: 1 pair

CUTTER’S MUST FOR A DIGITAL PATTERN 6009

From Main Fabric (Wool Coating):

Back – 2 pieces
Front – 2 pieces
Upper sleeve – 2 pieces
Lower sleeve – 2 pieces
Pocket flap – 2 pieces
Lapel facing – 2 pieces
Pocket welt facing – 4 pieces (17.5 x 4 cm)
Pocket bag – 2 rectangles (17.5 x 19 cm)
Upper collar – 1 piece
Neck stand (inner collar facing) – 1 piece

From Nonwoven Fabric (Undercollar):

Under collar – 1 piece

From Lining Fabric:

Use these modifications for lining:

Back – add 2 cm at center back for pleat
Front – exclude lapel facing section
Sleeves – both pieces (exclude vent finishing)
Flap and pocket bag – unchanged
Hem allowance – shorten lining by 2 cm for clean turn-up

From Fusible Interfacing:

Apply to: Front bodice pieces, undercollar, lapel facings, hem allowances, and sleeve hems

IMPORTANT INFORMATION

Before cutting your fabric:

• Always print and lay out all pattern pieces on your chosen fabric width (90–150 cm)
• Don’t forget mirrored pieces, grainlines, and directional layouts
• For plaid fabrics: align all pieces for consistent pattern matching
• Use basting or tailor’s tacks to mark lapels, notches, and darts clearly

DIGITAL PATTERN 6009 FOR 3D DESIGNERS, CONTRACTORS, AND ADVANCED SEWISTS

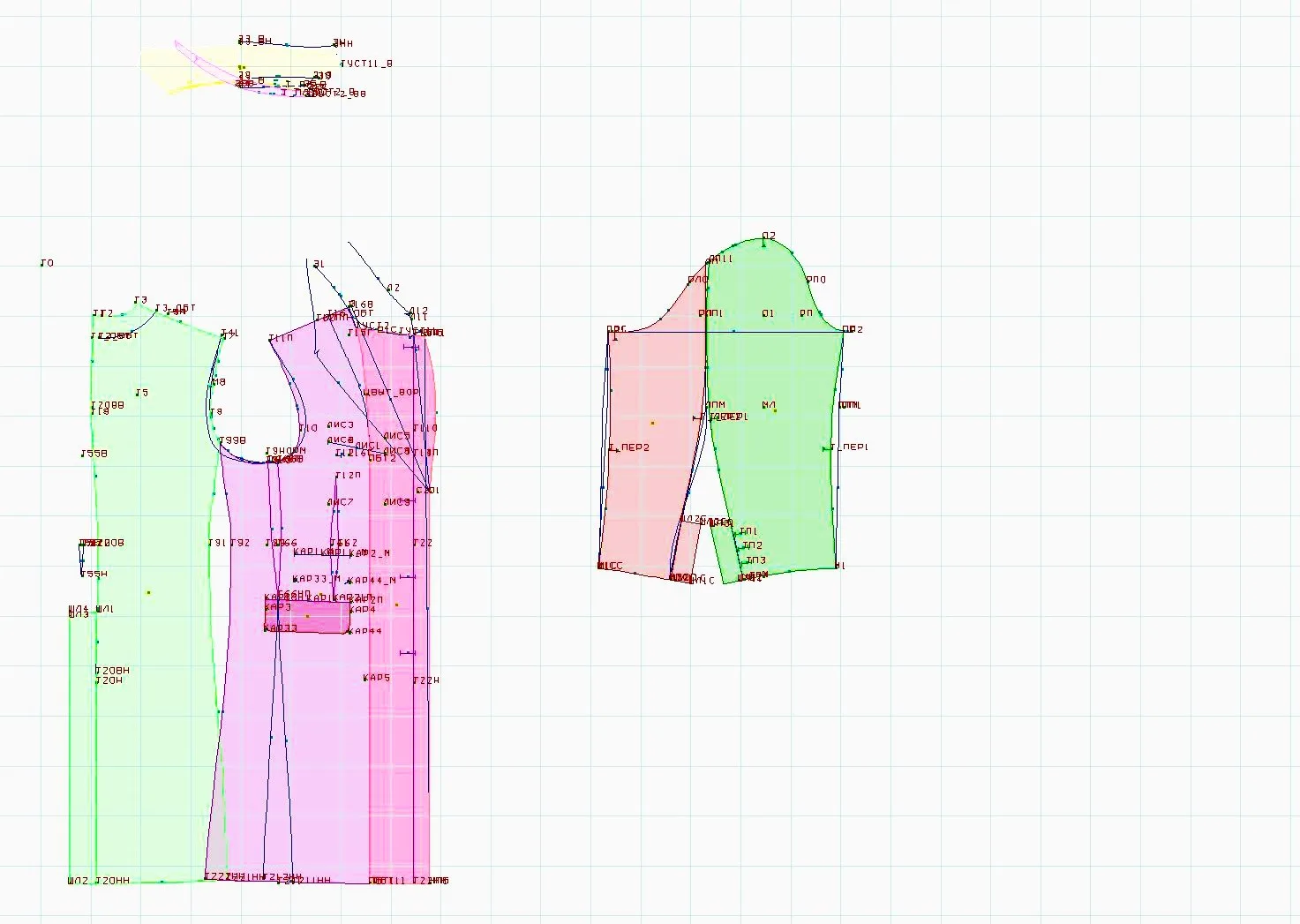

DXF AAMA for 3D Designers: Compatible with Clo3D and other CAD platforms—simulate weight, structure, and drape

PLT Format for Contractors: Plotter-ready for factory or workshop use

PDF Format for Advanced Sewists: Printable in A4/Letter tiled sheets with clear grainlines and markers

CUSTOM FIT OPTIONS WITH INDIVIDUAL MEASUREMENTS OR ASTM SIZES

Pattern 6009 is available in both standard ASTM sizing and customized measurement options.

• Bust (Chest): 35 cm to 170 cm

• Low Hip: 35 cm to 190 cm

The drafting software tailors the pattern to your shoulder width, sleeve length, and coat length for a proportional, accurate fit.

CHECK OUT ANOTHER DIGITAL PATTERN FOR MEN

For a full smart winter look, pair with Minerva Digital Pattern 6020 – a double-breasted men’s jacket that adds inner structure beneath this classic overcoat.
